Known Issues
This page contains the known issues for past batches and how to fix them.
Version v1.0.2 of the documentation is no longer actively maintained. The site that you are currently viewing is an archived snapshot. For up-to-date documentation, see the latest version.
Hardware Versions / Known Issues
Version History, Release Notes and Known Errors
Table of Contents

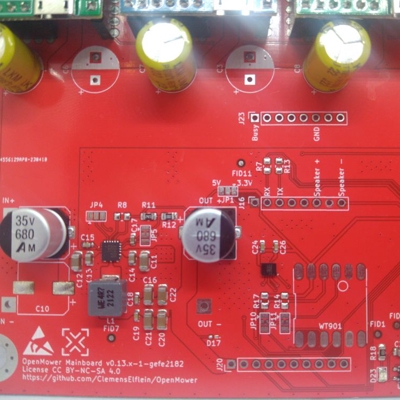

0.13.0 - Red
Notable changes:
- Custom CoverUI added to the kit
- Dropped support for dfPlayer sound module
Known issues:
- 2.5mm screws were missing (used to fasten RPi4). Affect kits shipped before June'23.

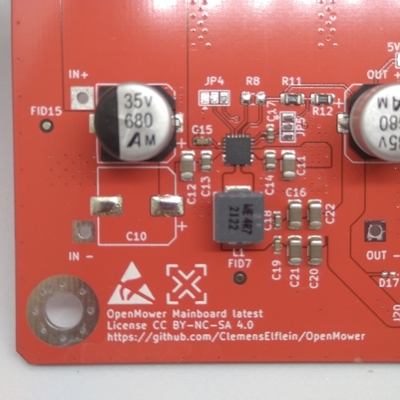

- The first batch of 0.13 boards was mistakenly labeled “latest”. No action needed.
- Outdated Firmware. Affect kits shipped before May'23.
- IC2 chip is wrong. Affect kits shipped before May'23.
- rain sensor cable is female, but needs to be male. Affect kits shipped before May'23.

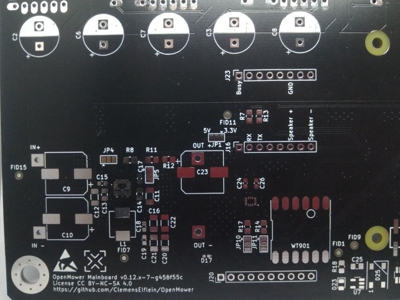

0.12.0 - Black
Notable changes:
- IMU: LSM6DSO instead of WT901
Known issues:
- SPI tracks from Pico were misplaced, already fixed in firmware. No action needed.
- Outdated Firmware
- IC2 chip is wrong
- rain sensor cable is female, but needs to be male

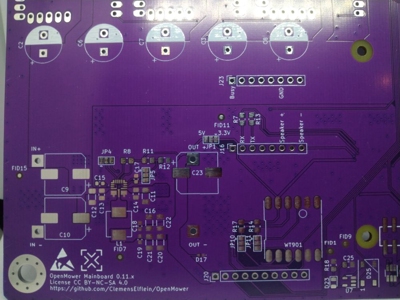

0.11.0 - Purple
Notable changes:
- Connected WT901 via I2C freeing pins for dfPlayer
- Upgraded dock station PCB with extra holes and terminals (red)
Known issues:

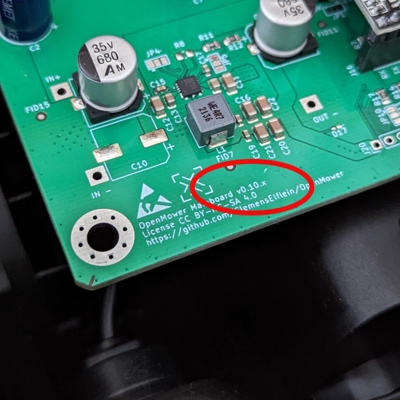

0.10.0 - Green
Notable changes:
- Added dock station PCB (green)
Known issues:

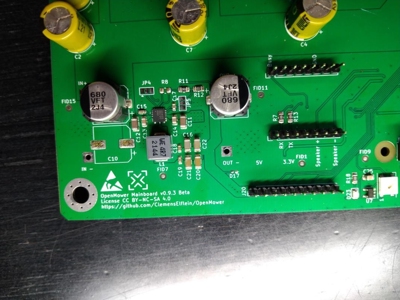

0.9.3 - Also Green
First build. Experimental xESC2040 instead of xESC-mini (STM32).
