Unicore GPS Modules

Several users have chosen alternative GPS RTK modules with chips by Unicore:

• UM960
• UM980
• UM982

These chips are sold in different variants. Some come with a USB-C socket (so they can be connected directly to the Raspberry Pi). Some have a different antenna socket, which requires an SMA F to MMCX M90 cable.

Compared to the ArduSimple simpleRTK2B, they are a bit cheaper and support triple-band frequencies.

Connection options

Configuration options

Software

The vendor offers UPrecise to check all status details and configure the receiver. The UI is pleasing and has many features, but also quite some bugs. The download requires creating a free account.

Configuration via UPrecise (USB)

Receiver

Connect to the receiver via UPrecise. COM3 is used when connected via USB. Paste the following commands into UPrecise:

FRESET
CONFIG COM3 460800
MODE ROVER UAV
GPGGA 0.1
GPGSV 1
GPRMC 1
GPGSA 1
GPVTG 1
GPGST 1
SAVECONFIG

You can also connect directly to the receiver’s TTY, but make sure to send CR+LF (\r\n) line endings — otherwise commands won’t be recognized.

OpenMower (mower_config.txt)

export OM_GPS_PROTOCOL="NMEA"
export OM_GPS_PORT="/dev/ttyUSB0"
export OM_GPS_BAUDRATE="460800"

Configuration via UART (mainboard)

Use this method when the RPi is already installed and you want to wire the module directly to the mainboard UART header.

Prerequisites

• Modified mower with replaced mainboard
• RPi with openmower service running

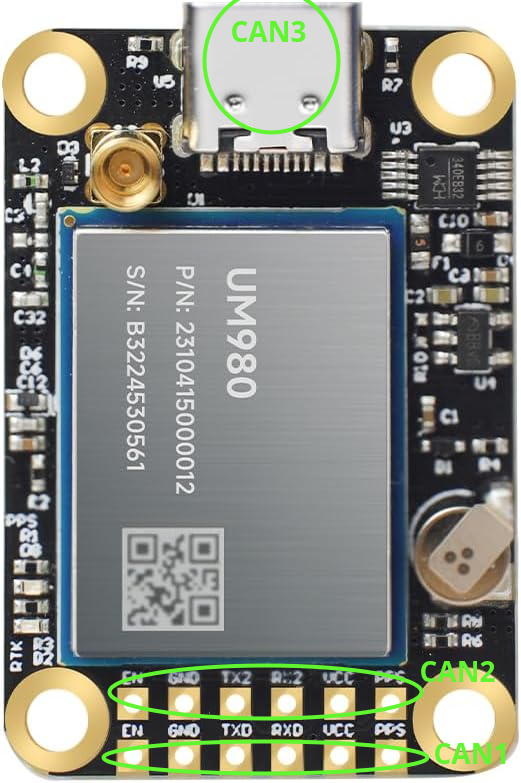

Step 1 — Solder headers on the UM9XX

You only need the 4 middle pins from the 6 available: GND, VCC, TX, RX.

The remaining 2 pins are not needed:

• EN — can be used to temporarily shut down the module
• PPS — pulse-per-second signal, useful only if you need precise timing

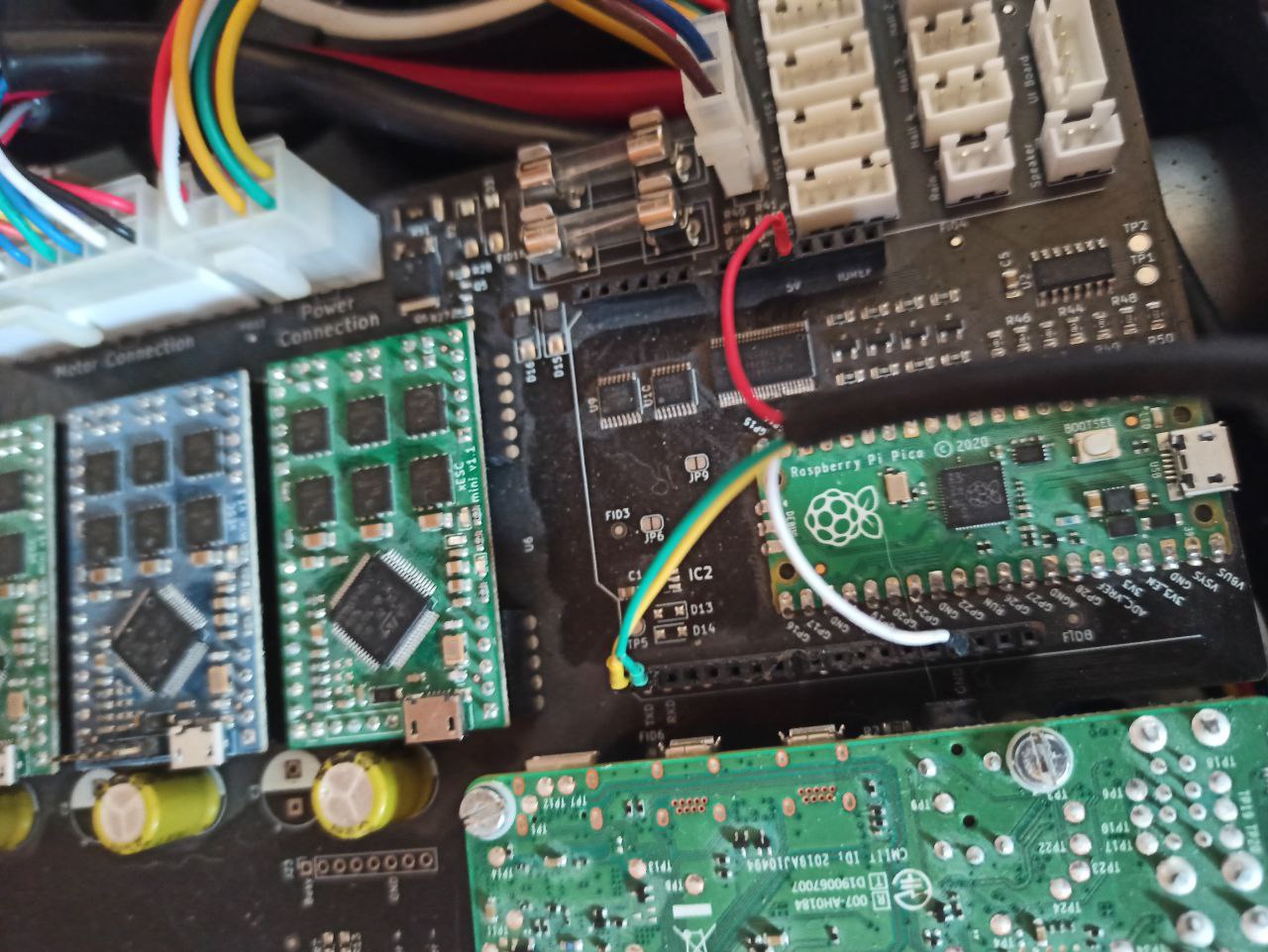

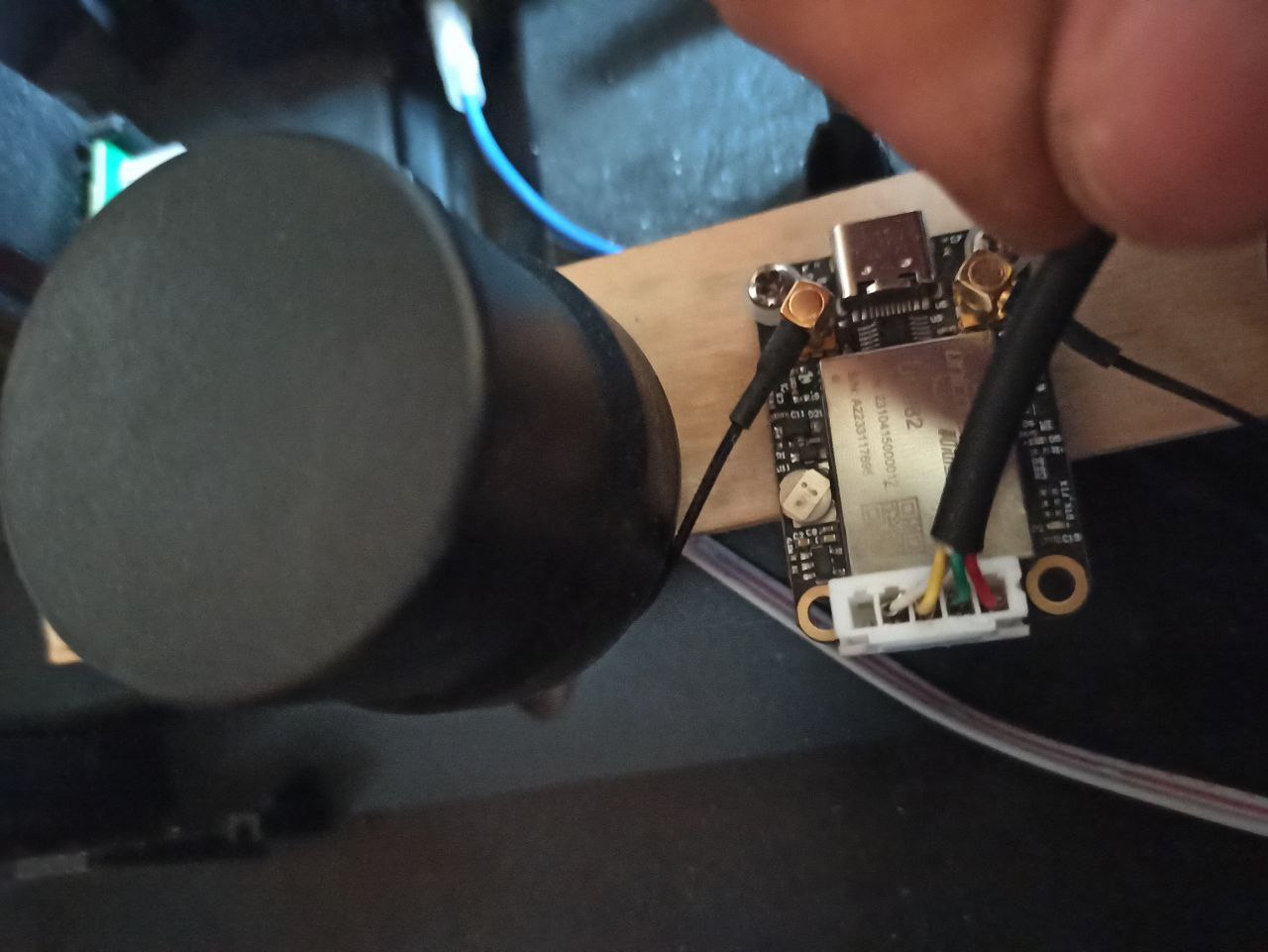

Step 2 — Wire UM9XX to the mainboard

An adapter board is available as an alternative to manual wiring.

Step 3 — Configure UM9XX over UART

Install miniterm (part of python3-serial):

sudo apt-get install python3-serial

Stop the openmower service so it does not occupy the UART bus:

sudo systemctl stop openmower

Connect to the UART bus at the default baud rate (115200):

python -m serial.tools.miniterm /dev/ttyAMA1 115200 -e

Note: The following commands assume you wired to the bottom lane (COM1). If you used a different lane, replace COM1 with COM2.

Factory-reset the module and note the response:

FRESET

Expected output:

$command,FRESET,response: OK*4D
system is rebooting
..........
$devicename,COM1*67

Set the baud rate to 460800:

CONFIG COM1 460800

Exit miniterm with Ctrl+], then reconnect at the new baud rate:

python -m serial.tools.miniterm /dev/ttyAMA1 460800 -e

Note: If commands get no response, the baud rate or COM port is wrong. Reconnect at 115200, run FRESET, and try again.

Configure NMEA output. Each GP* command produces extra output — make sure SAVECONFIG completes successfully at the end:

MODE ROVER UAV
GPGSV COM1 2
GPRMC COM1 1
GPGSA COM1 1
GPVTG COM1 1
GPGGA COM1 0.5
SAVECONFIG

Expected output after SAVECONFIG:

$GNGGA,192705.50,,,,,0,00,9999.0,,,,,,*45
$command,SAVECONFIG,response: OK*55
$GNGGA,192706.00,,,,,0,00,9999.0,,,,,,*43
$GPGSA,,1,,,,,,,,,,,,,,,,*73
$GNRMC,192706.00,V,,,,,,,030625,0.0,E,N,V*7B

Exit miniterm with Ctrl+].

Step 4 — Configure OpenMower

Run openmower configure ros and set the GPS protocol to NMEA and the baud rate to 460800.

With your RTK base configured, take the mower outside and verify you get a GPS fix.

Troubleshooting — receiver resets

If the receiver cannot get a fix, a reboot may help. UPrecise provides three reset buttons. Unlike FRESET, these do not wipe the configuration:

See section 8.3 (“Reset”) in the Unicore command reference for details.
